Master Lock 570 / Master Lock 575 / Master Lock 576

Orange Belt
Primary
Primary

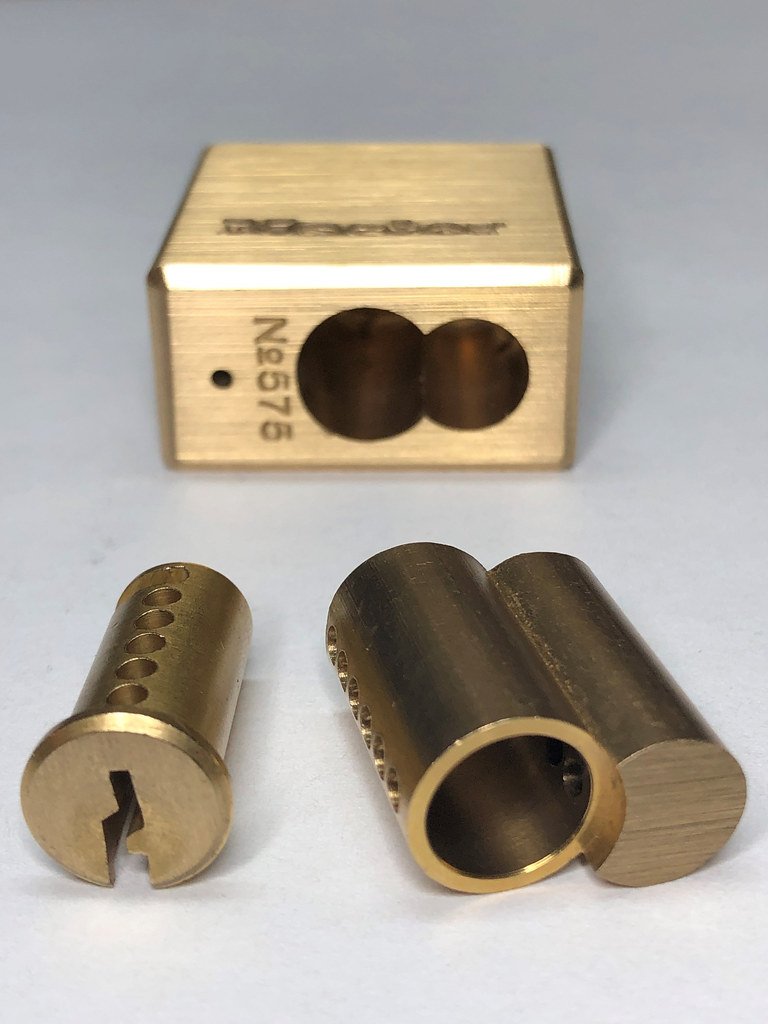

Keyway

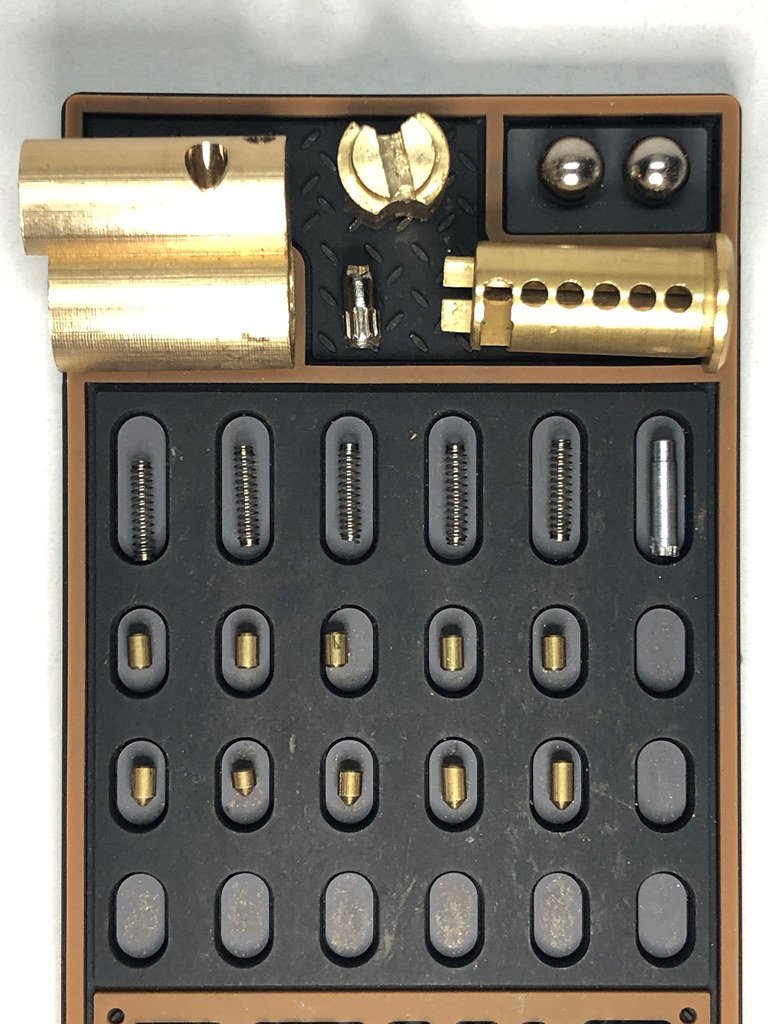

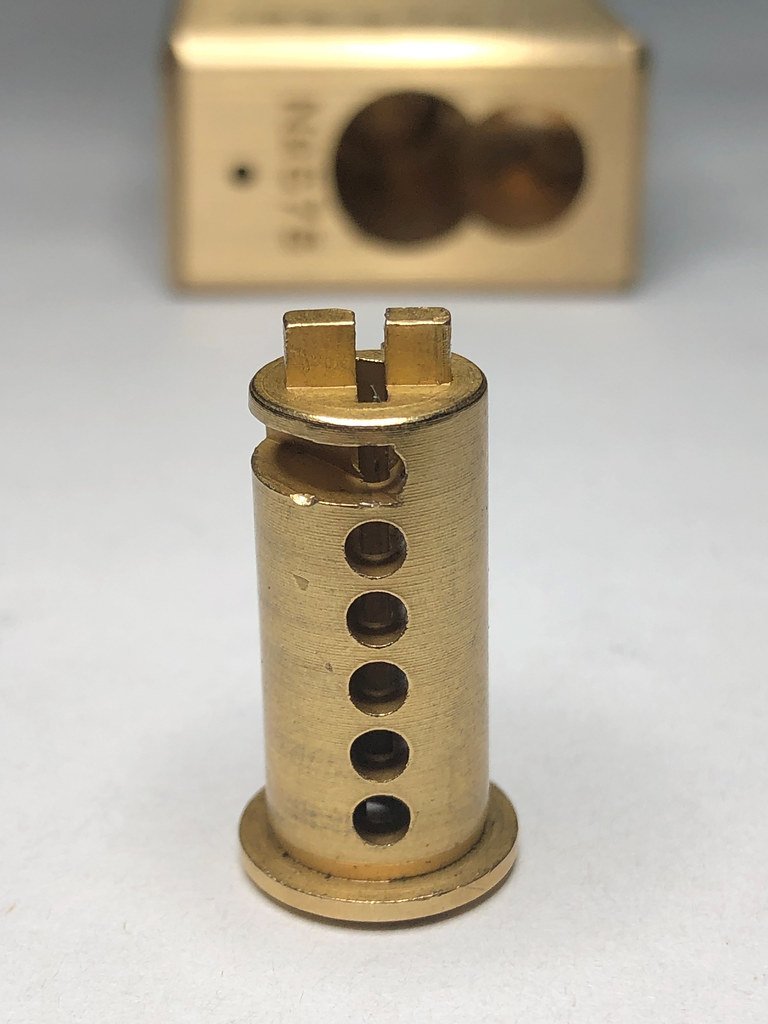

Internals
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)

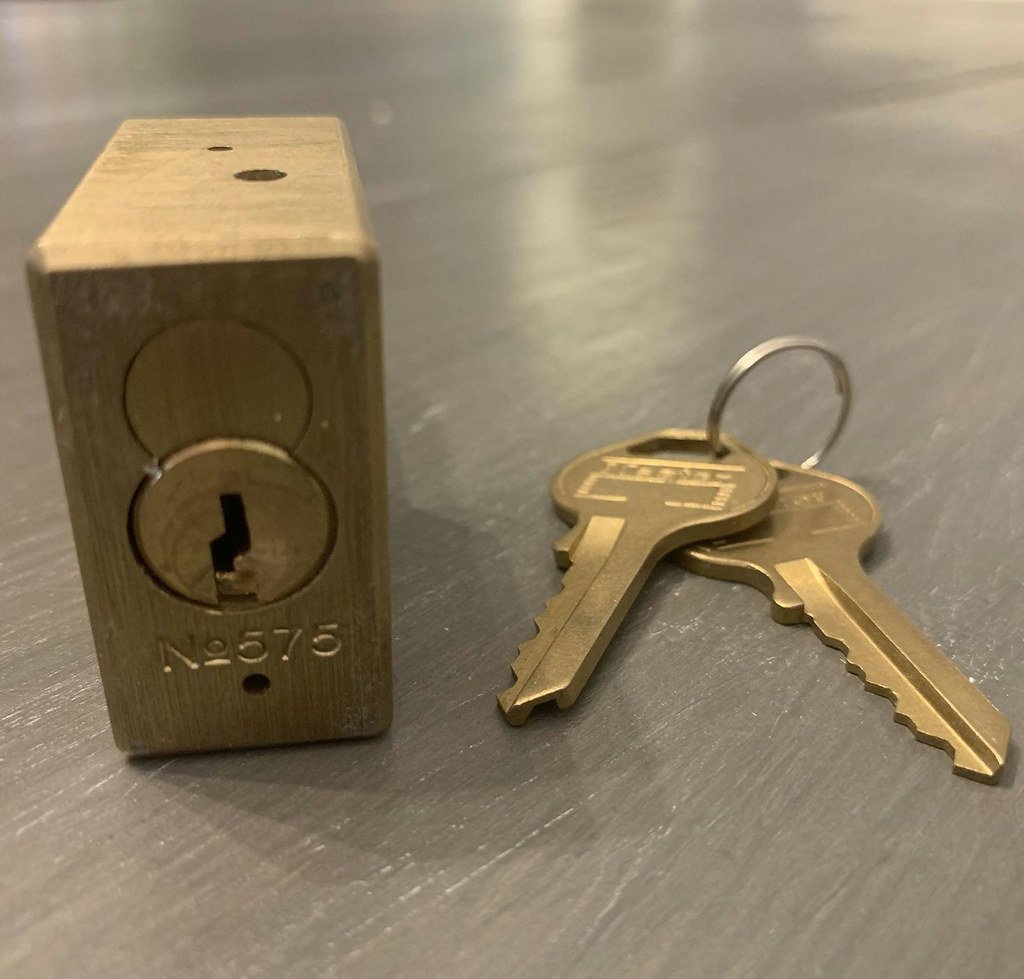

By: FloridaManPicks (CC BY-NC-SA 4.0, via LPU)
By: FloridaManPicks (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)
By: LockPickingFisherman (CC BY-NC-SA 4.0, via LPU)

Core Specs

Cylinder Type
Pin-tumbler

Community Knowledge

Difficulty Notes

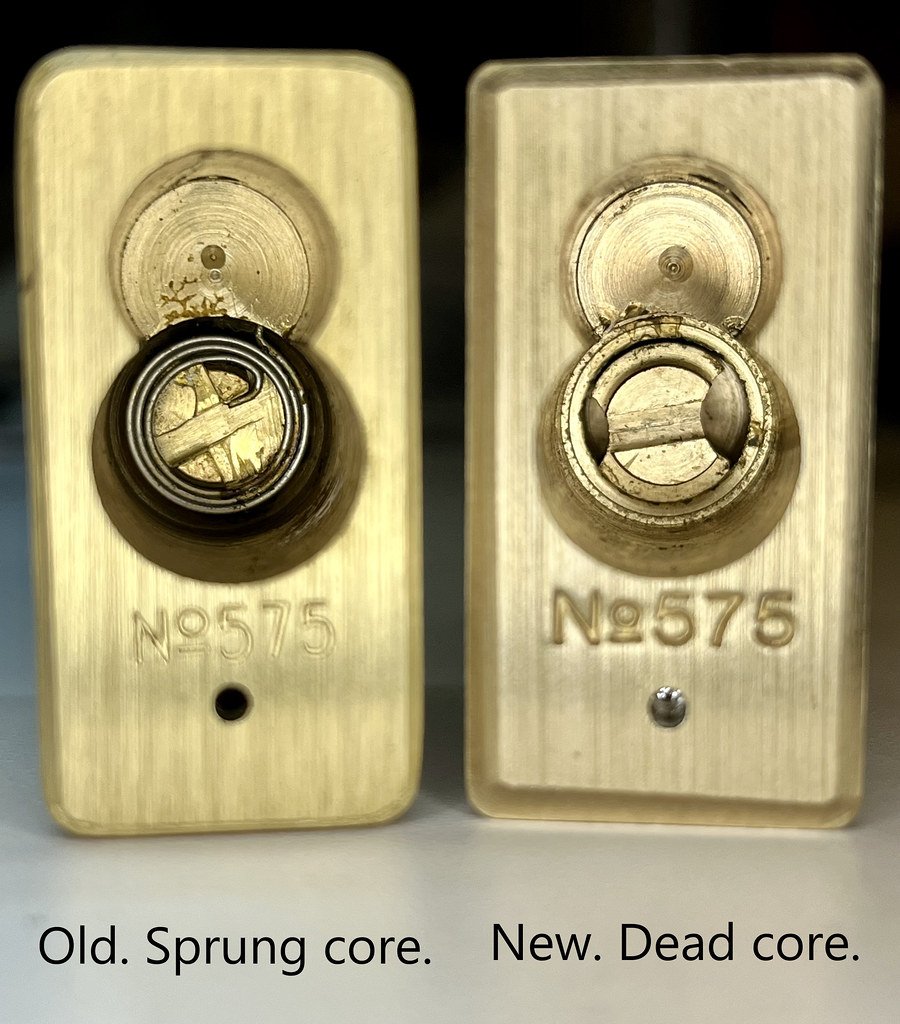

Newer models generally have security pins; older ones do not. The 570/575/576 series has a dead core. It is considered a good beginner lock for those with security pins if they have no false sets, but tolerances can be poor.

Sources (r/lockpicking):
- u/davidromano67 (2pts): 'It's kind of a crapshoot, generally speaking the newer ones have security pins and the older ones don't.'
- u/bluescoobywagon (1pts): '...Master 570/575/576 (which has a dead core).'
- u/LockPickingFisherman (1pts): 'This one will have no false sets and should be difficult but still accessible to a beginner'
[confidence: medium]

Picking Notes

City rake is destructive on locks with security pins and poor tolerances. Genesis picks are thinner and less flexy than standard picks.

Sources (r/lockpicking):
- u/davidromano67 (2pts): 'I find the city rake to be an absolute destroyer of worlds when it comes to locks with security pins and poor tolerances or lousy bitting.'
- u/LockPickingFisherman (2pts): 'I suspect your luck will improve with the Genesis picks. They're probably more refined and definitely thinner and less flexy.'
[confidence: medium]

Bitting Variance

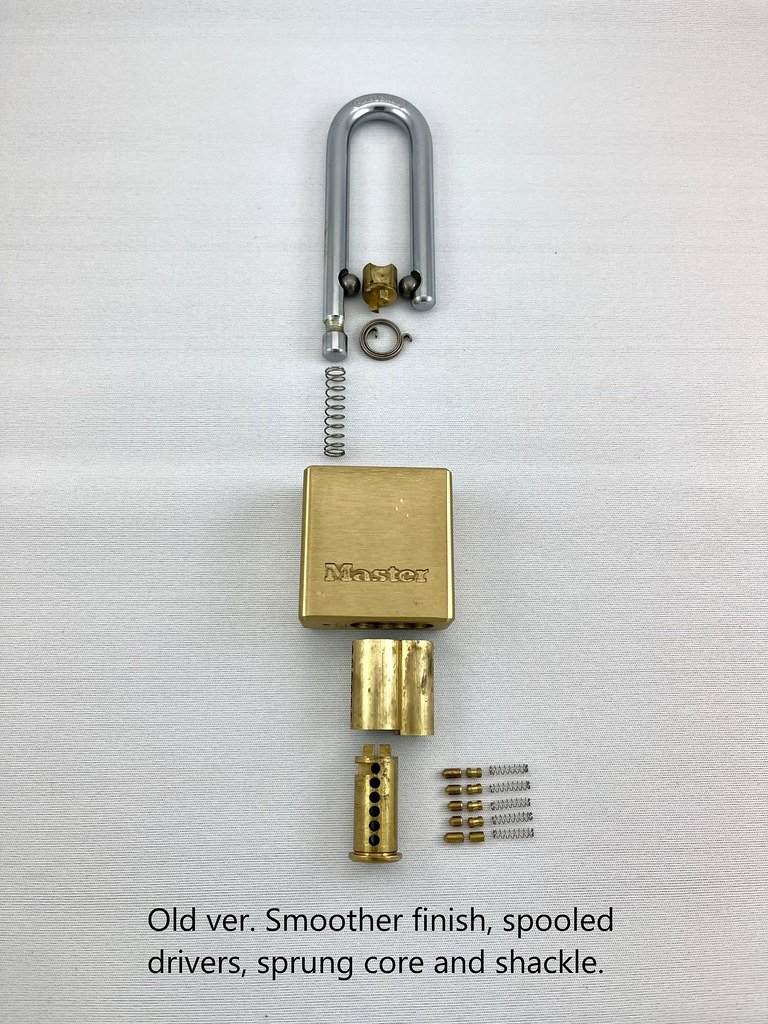

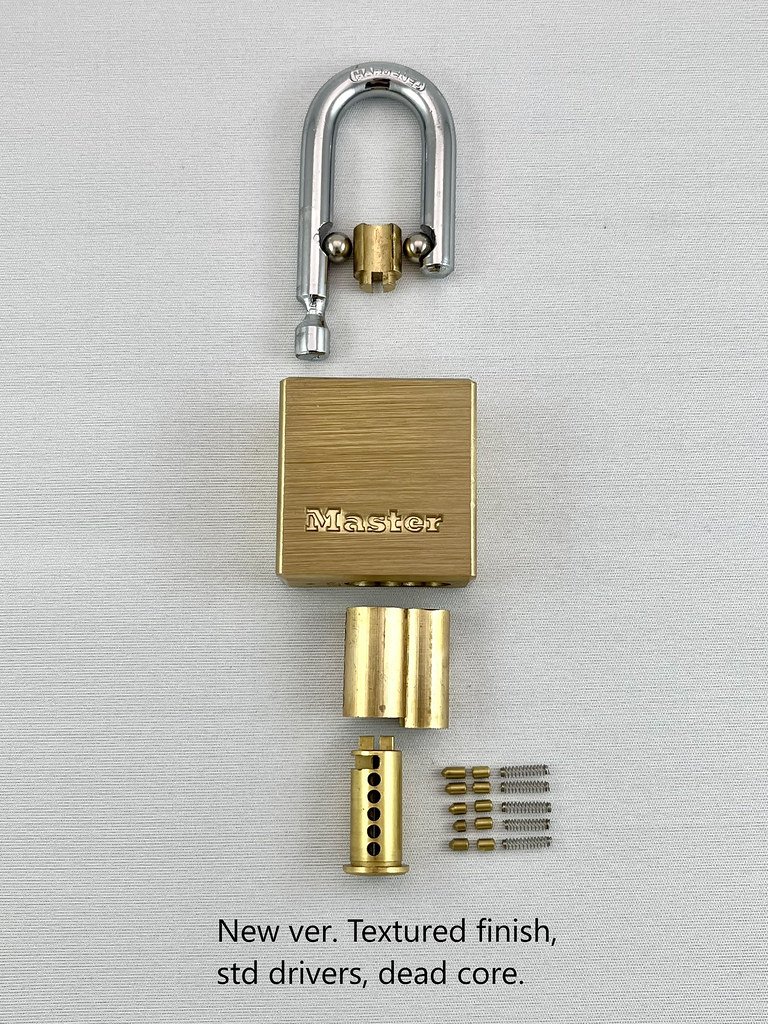

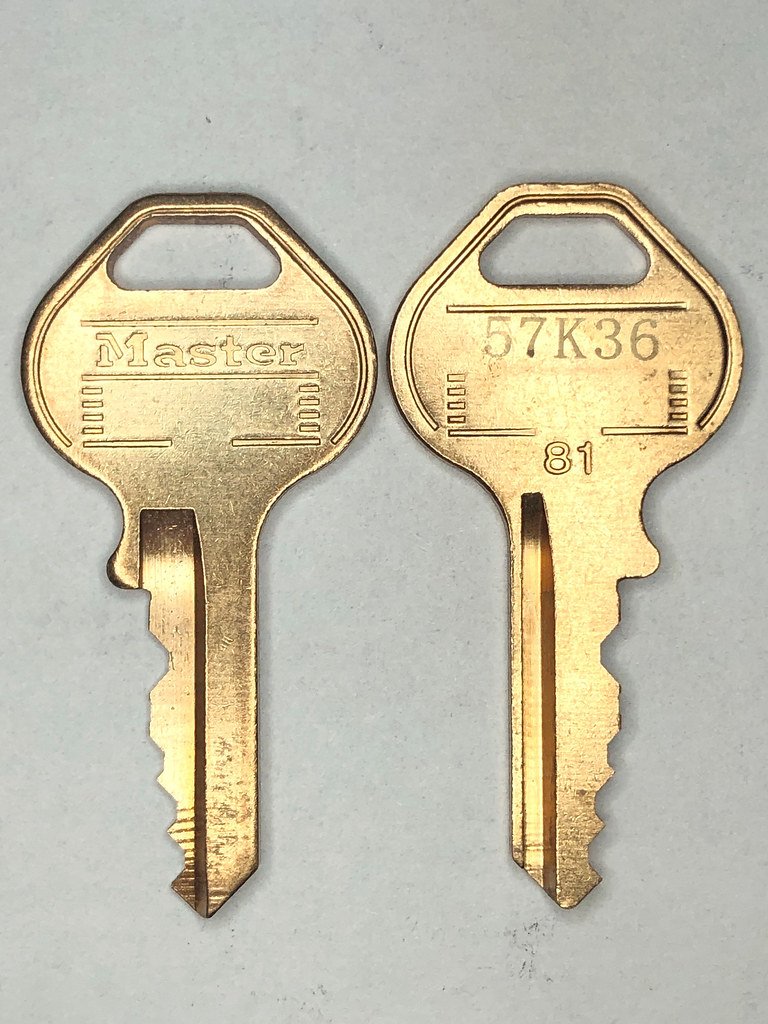

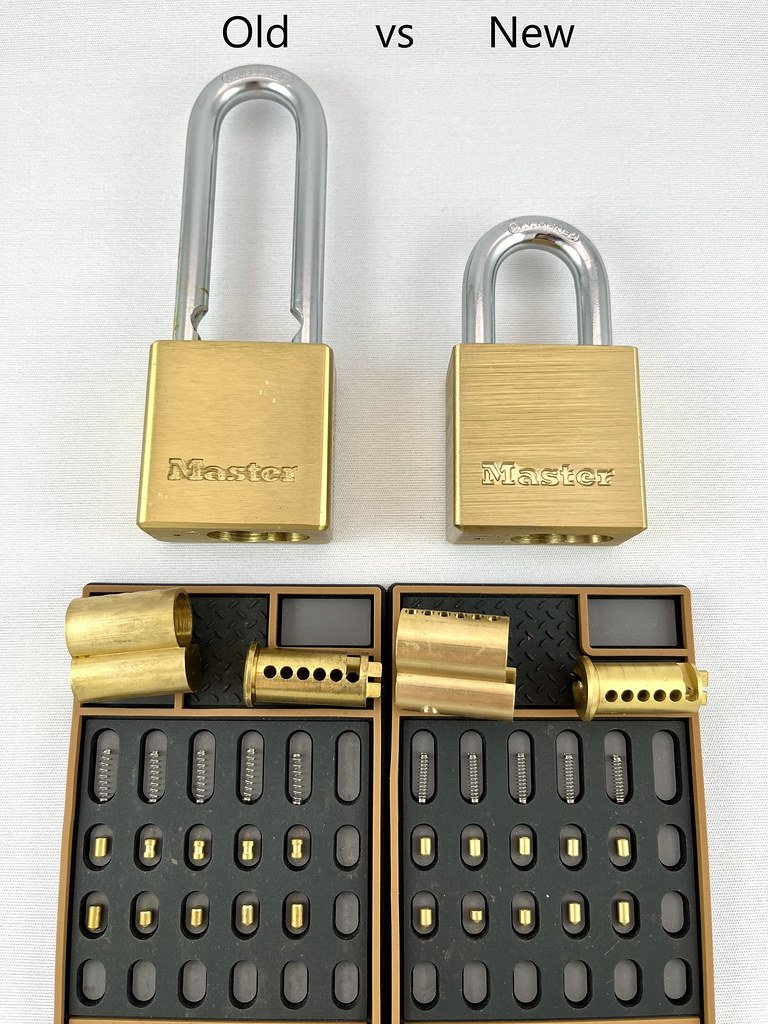

Manufacturing variations exist between older and newer stock (older lack security pins, newer have them). The 570/575/576 series shares the same core as the Master 605. The 570/575/576 series uses the W81 keyway. Some users note that clicks can be misleading as they may result from the pick slipping off warding rather than a pin setting.
